Hydraulic House Home Elevator Lift
Platform Size: 900*1100mm (can be customized)
Stops/floor :1/2/3/4/5
Max Capacity:400kgs
Color :White/Black/Gray/Wooden…….
Entry & Exit Mode :0°/90°/180°
Lifting Speed: 0.4m/s
Drive System: Hydraulic driven
Elevator General :
Hydraulic home lift/elevator is a small elevator used in citizen houses or buildings, it is easier to be designed, easier to be carried, easier to be install and maintain, it is more suitable for an installation place with a size less than 1.5m*1.5m, the capacity can be designed from 400kg, and it is very popular in European county houses and northern America country families.
f
Feature:
1. Simple to installation: only need the bolts and nuts install the equipment into ground or pit;
2. Safety to use: the device have 4 safety systems;
3. Cost-effective: we can support good quality products with the lowest price, and our price is no more than half of the same products made in Europe.
4. Flexible installed: it can be installed any place, indoors or outdoors.
5. Flexible designed: the size and height and capacity can be made according to customer’s requirement.
5. Simple maintenance: every maintenance work is simple for engineer or users, only need to add oil and checking 7~8 main spare parts is ok, all of the movable spare parts are replaceable, if any small pieces are damaged or failure, only disassemble it by hand is ok.
Hydraulic Home Lift Elevator Safety assurances:
1. Emergency button designing: if something unforeseen occurs, pressing the emergency button can stop the lift platform lift up and down;
2. Emergency decline designing: if power off or equipment failure, pressing the emergency decline switch can make the cabin decline to the ground level slowly.
3. Photoelectric sensors optional installed: if you have special requirement about the photoelectric sensor switch or light curtain, it can be installed under the cabin. The lift platform will be stopped lift up and down when some one walk into the forbidden area of the cabin.
4. Anti-explosion valve installed: if the hydraulicoil tube explored or leaking oil, and make the pressure reduce suddenly, the anti-explosion valve will work to keep the platform stable and safe.
5.Handicapped men special cabin designed: our technician team makes the humanity designing to disabled men, installing anti-sliding steel board in the platform; designing enough space to ensure the wheelchair can turn round in the cabin, designing stable handrail to keep the handicapped men safe.
Hydraulic Home Lift Elevator Details:
Driving system: pump station with hydraulic cylinder;
Control system: calling box, control board, remote controller;
Mechanical system: guide rail with mechanical guide wheel;

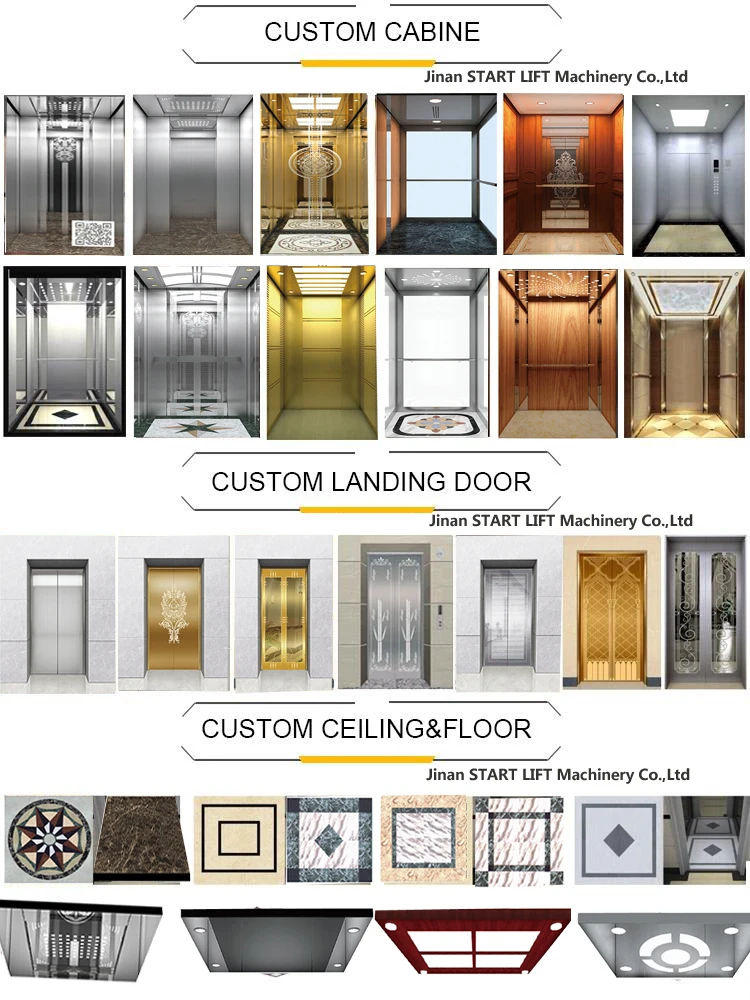

Cabin designing: the cabin’s designing will respect customer’s requirement and actual need, with lock, with sliding door or swing hinge door, with steel glass, or with PVC finished.
