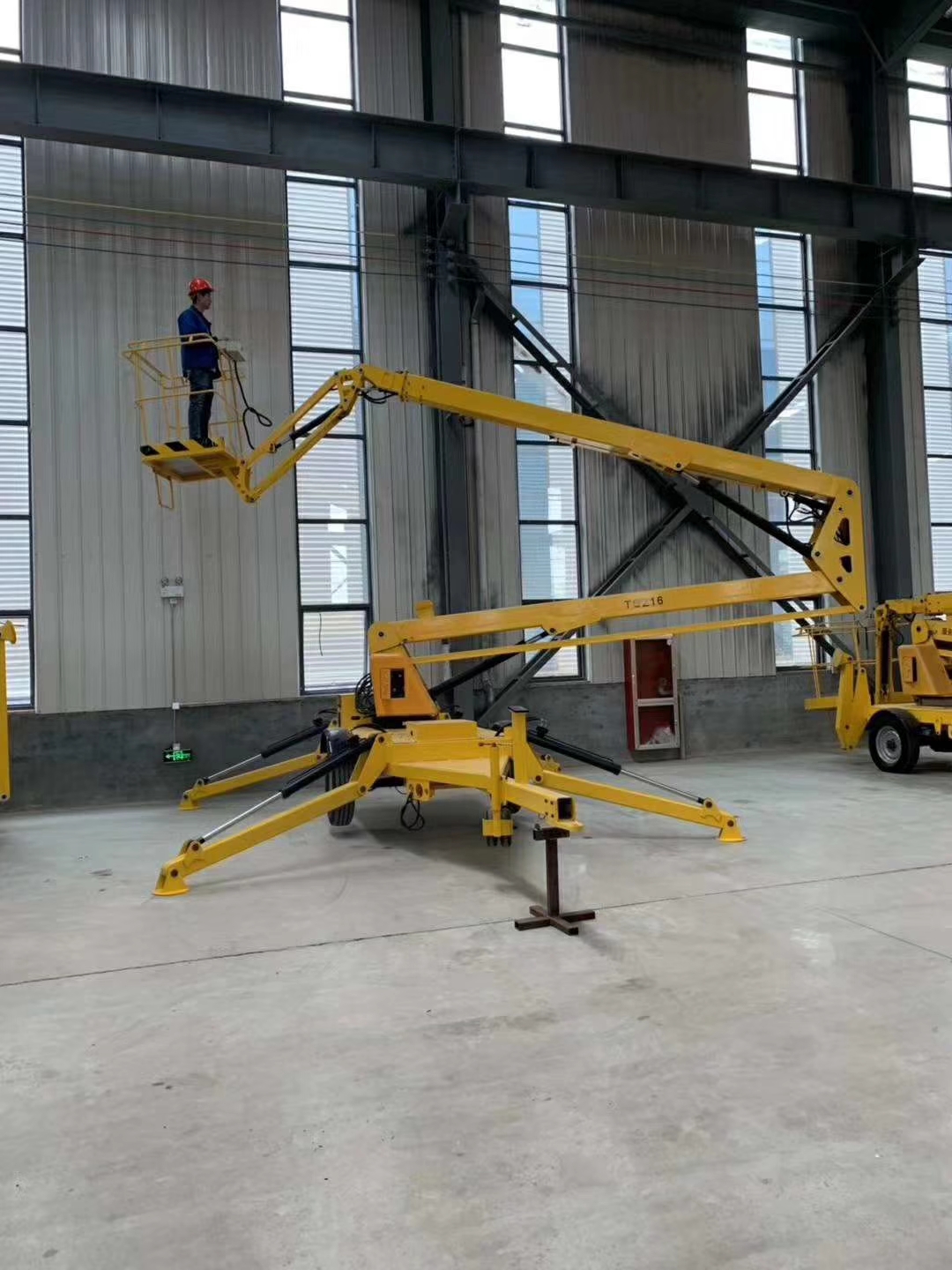

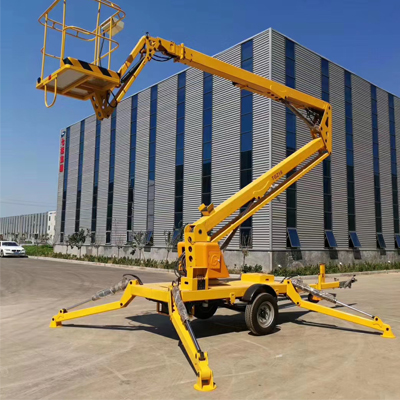

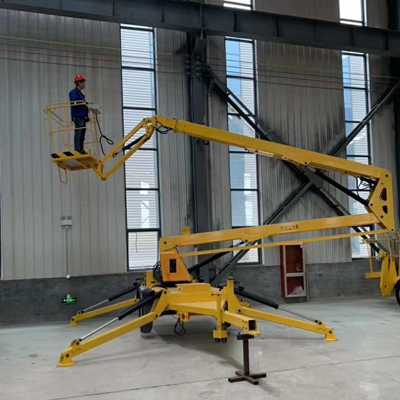

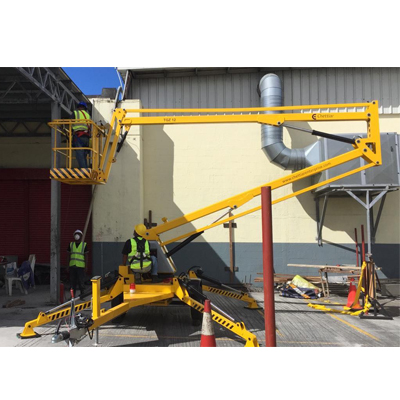

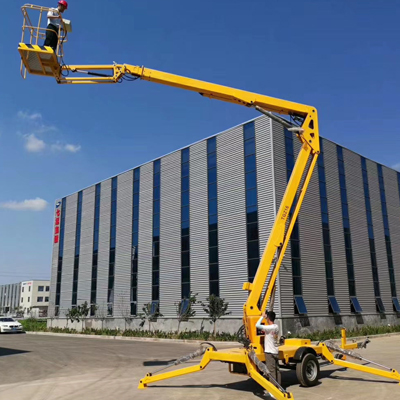

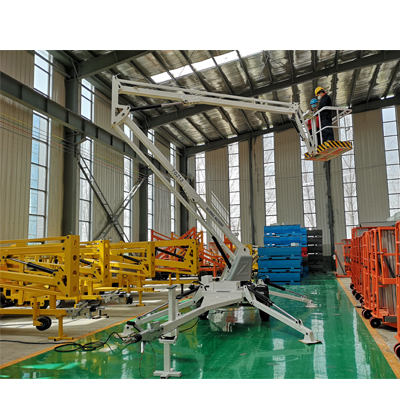

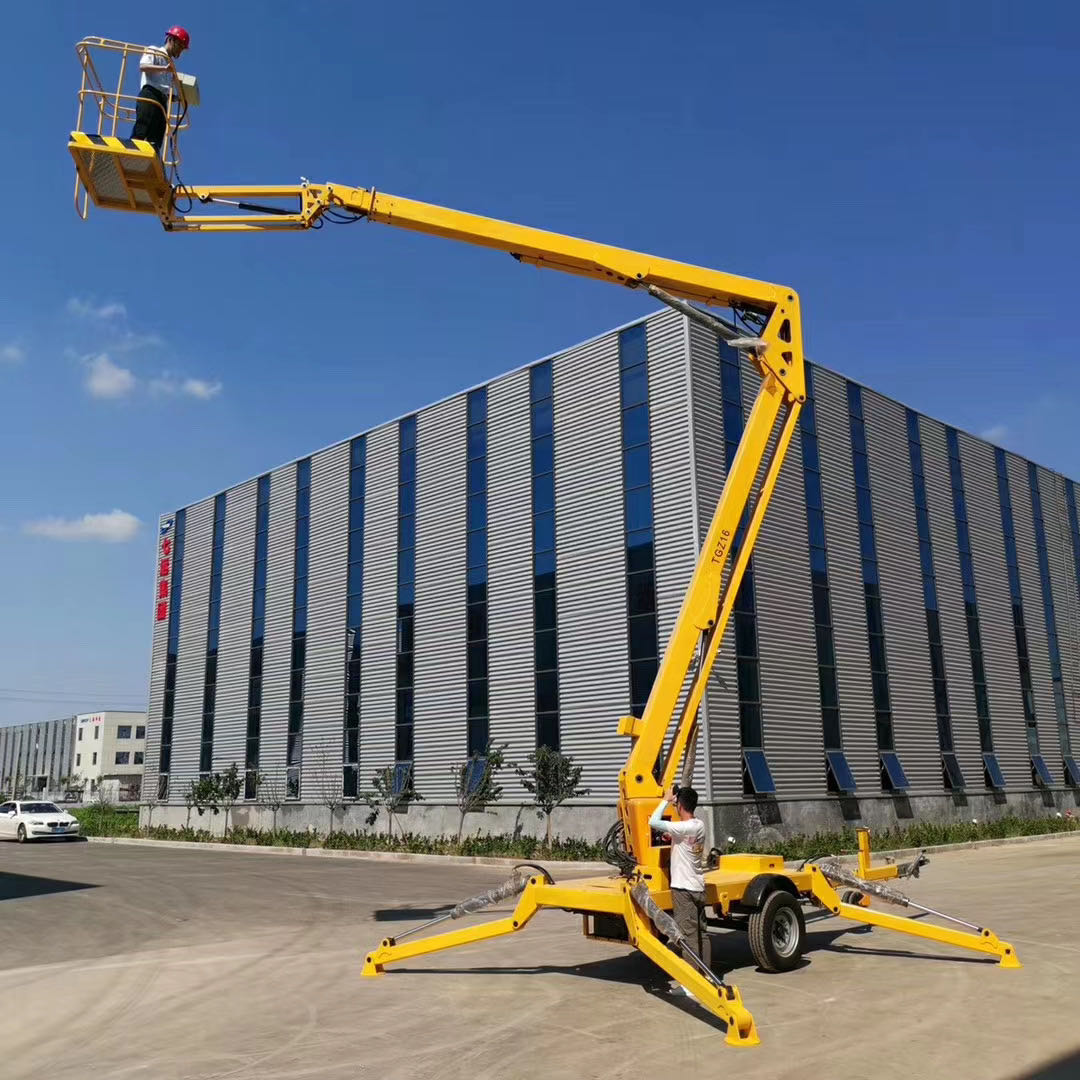

cherry picker spider lift man boom lift aerial work platform trailer mounted articulating telescopic towable boom lift

General Introduction:

With easy-to-travel mobility,trailer-mounted boom lifts feature an outstanding operating envelope to reach jobs high and low.

Offering the best of both worlds, Start trailer-mounted booms boast the operating envelope of boom — reaching up, over and out, as well as can be easily towed behind a pickup or SUV.



Model	TGZ-8	TGZ-10	TGZ-12	TGZ-14	TGZ-16
Platform Height	8M	10M	12M	14M	16M
Working Height	10M	12M	14M	16M	18M
Maximum working  radius	4.5M	5M	6M	8.5M	9M
Load Capacity	200KG	200KG	200KG	200KG	200KG
Platform Size	1200*800MM	1200*800MM	1200*800MM	1200*800MM	1200*800MM
Dimension(mm)	5200*1585*1900MM	5400*1665*1900MM	6000*1665*1900MM	6200*1730*2100MM	7000*1730*2200MM
Weight	1500KG	1700KG	2000KG	2350KG	2600KG
Voltage	Customized	Customized	Customized	Customized	Customized
General Power	Alternate current	Alternate current	Alternate current	Alternate current	No
Battery power	Optional	Optional	Optional	Optional	Optional
Dual power	Optional	Optional	Optional	Optional	Optional
Light :Brake/Tail/P  latform	Optional	Optional	Optional	Optional	Optional
Units for 20 GP	1 set	1sets	1sets	/	/
Units for 40GP	2sets	2set	2set	2set	1set







1. Compact design for indoor and outdoor use. Accommodates tight work areas
2. Self-leveling platform
3. Hydraulically arms and outrigger interlocks  360° continuous turntable rotation Low ground pressure due to optimal weight dispersal.
4. Dual power sources:220V AC and petrol engine.
5. Cables and hoses inside the boom.
6. Safety and reliability: Complies with or exceeds all by ISO manufacturing standards, e.g. CE-approval.
7. Adds length and reach through extended joints
